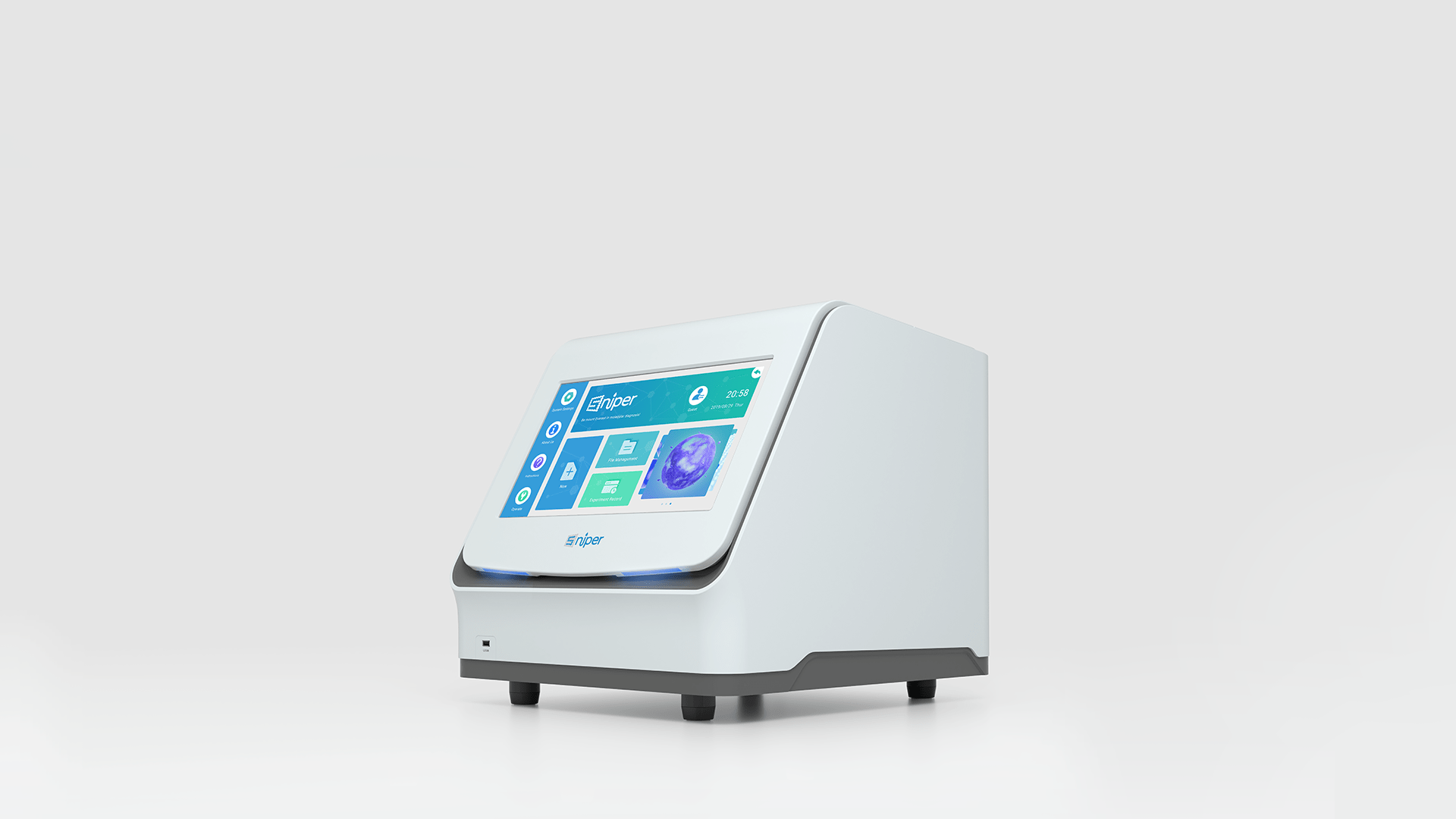

Sniper DQ24 Digital PCR system

Load-and-go operation

The Sniper DQ24 PCR System is an all-in-one equipment – Press the start button and no more operations are needed.

Full duration of the experiments is less than 2 hr.

6 fluorescence channels

6 fluorescence channels are for users to choose from.

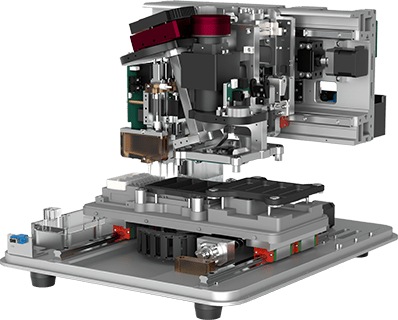

Special optical design eliminates crosstalk of signals and ensures the multiplex results.

Process assured

Active droplet generation method (VibroJect) ensures droplet monodispersity.

Ultra-low dead volume of aqueous samples reduces quantification uncertainty.

Permanent sealing of reaction – zero risk of crossover contamination.

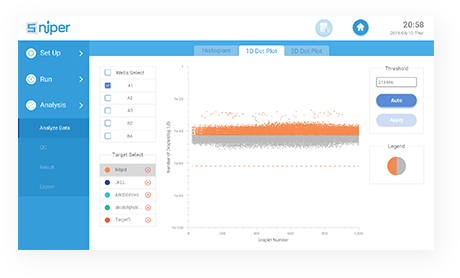

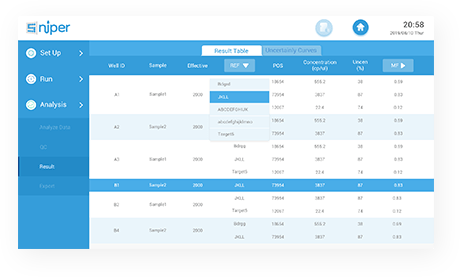

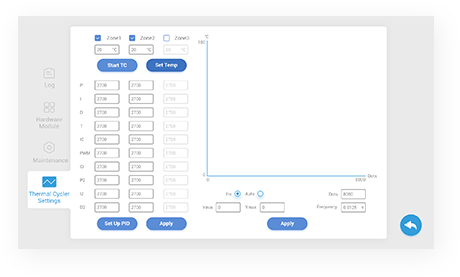

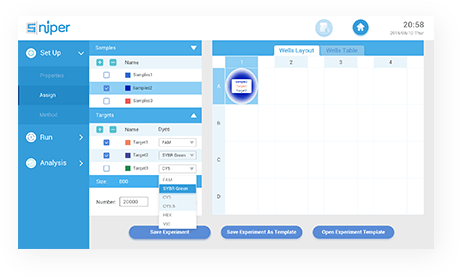

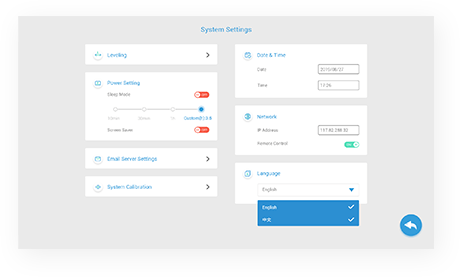

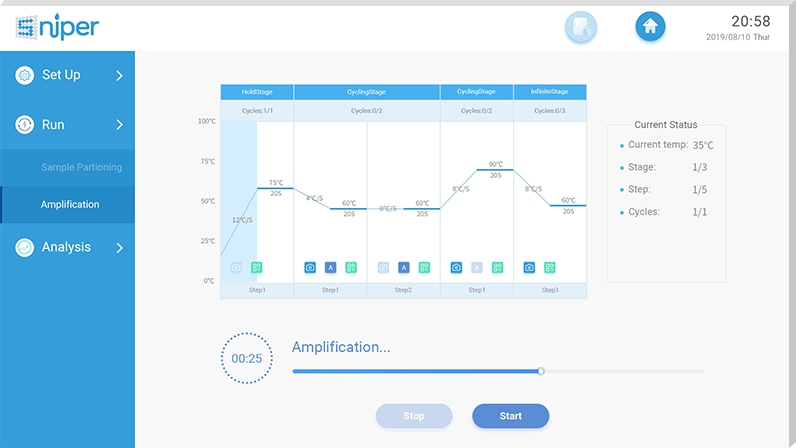

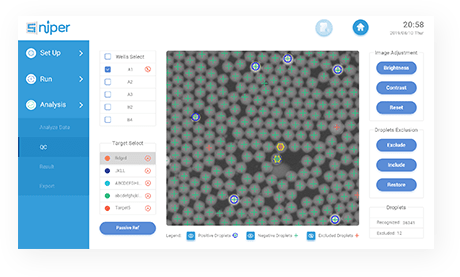

User-friendly software

Easy-to-use interface helps plan, monitor and analyze the experiments.

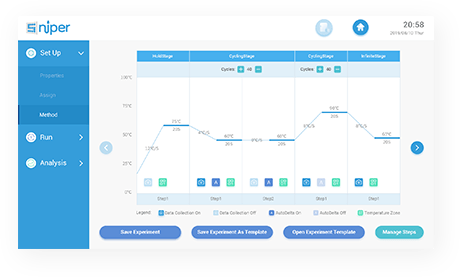

Simple and intuitive setup procedure easily finishes in a few steps.

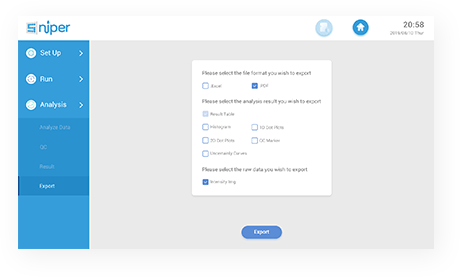

Process precisely tracked and data preserved.

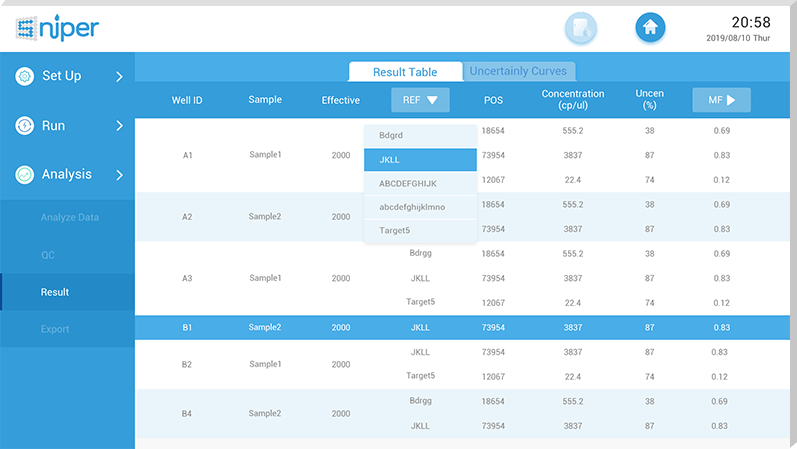

Results are lined up in comprehensible and sensible layout.

Sniper DQ24 Digital PCR System
Starting simple volume, µl
20
DQ24 capacity
16/24 samples/run
Droplet per 20µl sample
21,000
Sample illumination
Light-emitting diode
Sample detection
Complementary metal oxide semiconductor
Detection channels
FAM/EvaGreen, HEX/VIC/JOE, Cy3/TAMARA, ROX/TexasRed, Cy5/Q670, Quasar 705/Cy5.5
Linear dynamic range
5 orders of magnitude
Precision
+/- 10%
DQ24 dimensions
L×W×H, 495×500×560 mm3
DQ weight
56 kg
PCR duration
2 hr for 16 samples, 2.5 hr for 24 samples
Temperature ramping rate
>3.5 ˚C/s
Temperature precision
0.1 ˚C
Software
Sight
Working environment
Temperature 15-30 ˚C, humidity≤85%, molecular lab clean
1

Sample preparation

Prepare PCR reaction mixes with TaqMan probe or EvaGreen in 8-tube strips

2

Load the sample and walk away

Load the mixes in 8-tube strips and DQ droplet generation toolkit onto the holder and set up your assay in Sight software

3

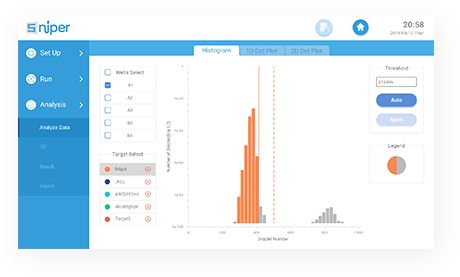

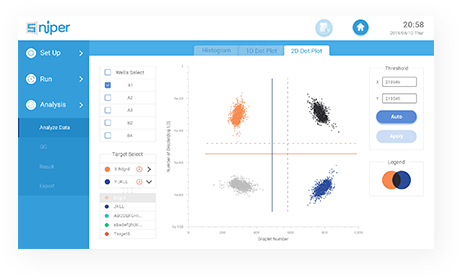

Data analysis

Analysize your data with Sight software

APPLICATION AND USES

CNV & SNP

Cancer biomarker studies

Gene

Gene expression analysis

Pathogen detection

Cancer biomarker studies

Accurate quantification

Accurate quantification for NGS library without the use of standard curve

Safety testing

Agricultural produce and food safety testing

Environment

Environment microbiome monitoring

DQ Droplet Generation Micropipette

DQ Droplet Generation Toolkit

DQ Droplet Generation Oil

DQ Driver Oil

DQ Droplet Reaction plate lid, 4 wells

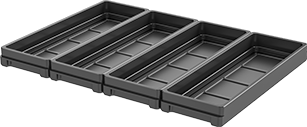

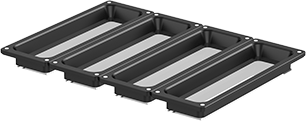

DQ Droplet Reaction plate, 4 wells

Product page
Product manual
